2 Din General Car Models 7"" inch LCD Touch Screen Car Radio Player Bluetooth Car Audio Support Rear View CameraSupport 9 languages menu:English, Spanish, German, French ,Russian, Portuguese, Italian, Japanese, Chinese Features: |
Build-in Bluetooth V2.0 hands-free call.
Adopt 800 x 480 resolution 26 million full color 7-inch TFT display screen.

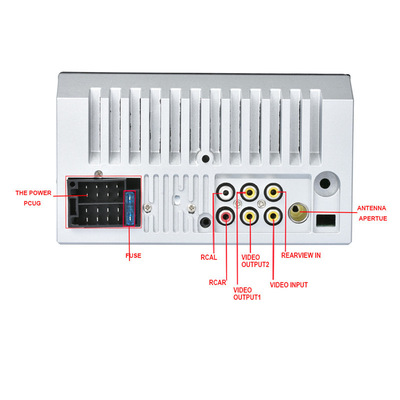

One-way video output, one-way rearview video output, one-way audio output.
High definition FM audio function and 18 stations preset.

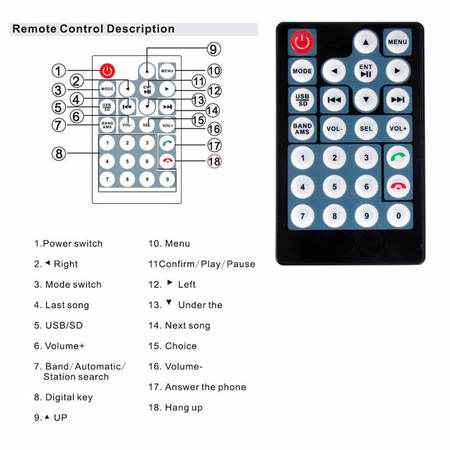

Support IR wireless remote controller.
Firmware update, 24 hours digital clock, date.
Support RMVB / RM / FLV / 3GP / MPEG / DVIX / XVID / DTA / VOB / AVI video file format.
Support MP3 / WMA / WMV / OGG / APE / ACC / FLAC audio file format.
Support JPEG / BMP / GIF / TIF image format scan.
Support high capacity TF / MMC card up to 32G (not included), USB driver, MP5 player.
Support the order of play / browse play / single repeat / random play / previous / next / fast forward / rewind.
Electronic type bass / treble, left and right balance, front and back balance, volume control.
Radio function, support for semi-automatic search / manually search for / frequency fine-tune, 18 saved channels.
Power and memory function, memory power outages radio reception quality in / playback of the state.
Variety of audio options: Jazz / pop / rock / classic and so on.
Support subwoofer (left and right channel stereo).
Maximum power 4 x 60W, 4 channel powered power amplifier output can be accessed by four horn.
Front and rear left and right / left and right channel isolation.
Electronic seismic / over-voltage / over-current protection.
The remote control battery (not included): CR2025 3V
Power Supply
12V Machine: 11 - 16V
Note: This machine is 12V machine, not according to the 24V power supply

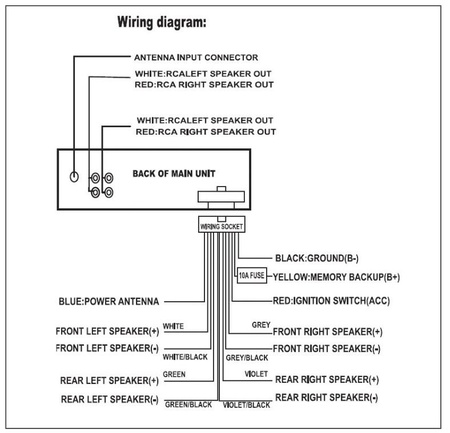

Important notice before installation: Please read carefully!!!

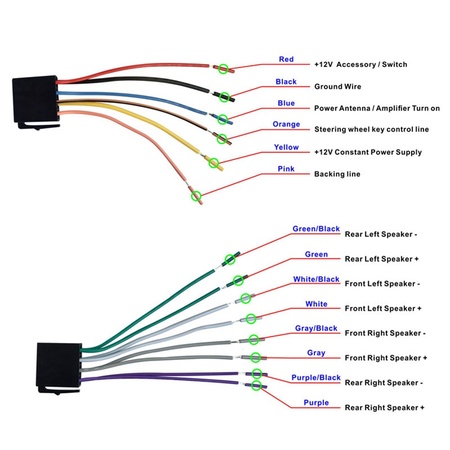

Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.
Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.
Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.
The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).
Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.
The following conditions may cause the machine to burned:
1. Can not use the original car plug directly connected to our new machine, do not match will lead to the machine burned, part of the machine can be shared please consult customer service.
2. If you buy a 12V voltage product do not install to 24V voltage models, otherwise it will cause the machine burned.
3. When wiring, speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to boot or machine without sound.
