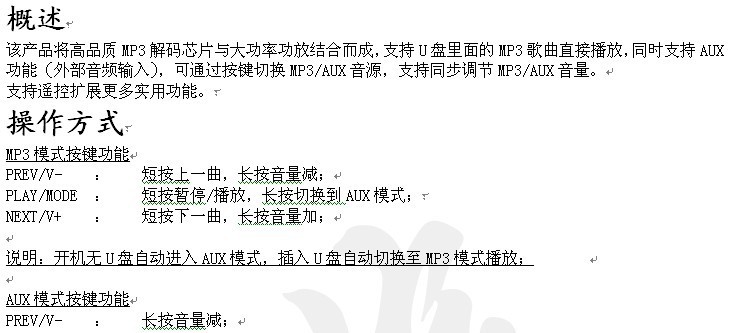

Mode of operation
MP3 mode button function

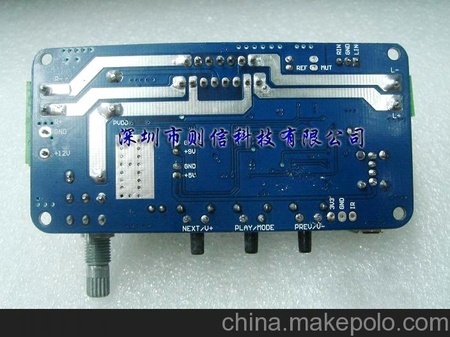

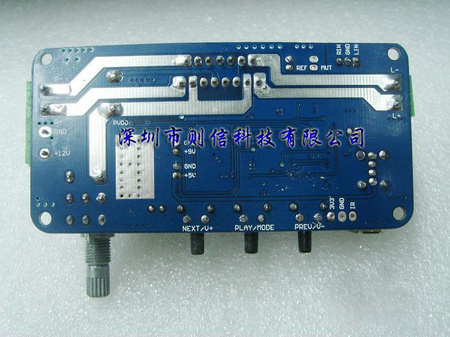

PREV/V-: press on one, long press the volume reduction;
The PLAY / MODE: press pause / play, long press to switch to AUX mode;
NEXT / V +: short press of a long press the volume;

Description: The boot U disk automatically into the AUX mode, insert U disk automatically switch to MP3 mode of play;

AUX mode button function
PREV/V-: long press the volume down;
The PLAY / MODE: Press and hold to switch to MP3 mode;
NEXT / V +: long press the volume increase;

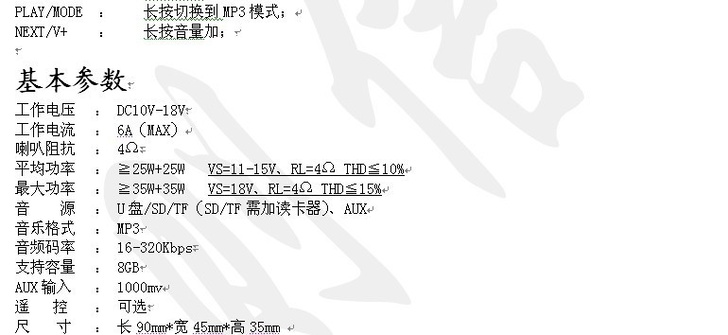

Basic parameters
Operating voltage: DC10V-18V
Operating Current: 6A (MAX)
Speaker Impedance: 4Ω
Average power: ≧ 25W +25 W VS = 11-15V, RL = 4Ω THD ≦ 10%
Maximum power: ≧ 35W +35 W VS = 18V, RL = 4Ω THD ≦ 15%

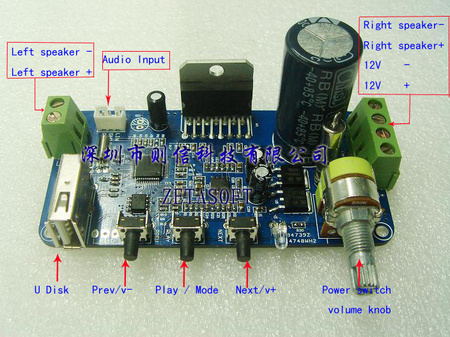

Sources: U disk / SD / TF (SD / TF need to add card reader), AUX
Music Format: MP3
Audio bitrate: 16-320Kbps
Support capacity: 8GB
AUX Input: 1000mv
Remote control: Optional
Size: Length 90mm * W 45mm * H 35mm

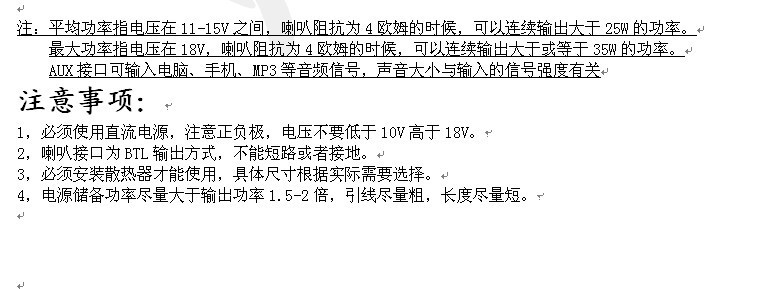

Note: The average power when the voltage between 11-15V, the speaker impedance of 4 ohms of continuous output power greater than 25W.
Maximum power voltage 18V, the speaker impedance of 4 ohms, continuous output is greater than or equal to 35W.
AUX interface can enter computers, mobile phones, MP3 and other audio signals, the voice of the size of the input signal strength
Note:
1, must use a DC power supply, pay attention to the positive and negative voltage is not less than 10V higher than 18V.
2, the speaker port for the BTL output mode, not short-circuit or grounding.
3, you must install the radiator can be used, select a specific size ording to actual needs.
4, power reserve power as possible is greater than 1.5-2 times the output power, as far as possible coarse lead length as short as possible.

?
