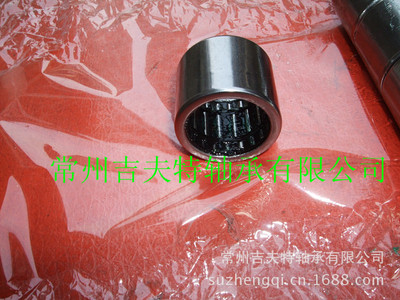

HF型冲压外圈滚针离合器是一种外星轮式超越离合器。滚针是锁紧元件。它由薄壁冲压外圈、保持架、镶嵌于保持架中的异形弹簧和装入保持架中锁紧元件滚针组成的。异形弹簧使滚针始终贴紧在冲压外圈内径偏心圆弧工作面上,又因滚针的质量很小,所以允许较高的转换频率,并且有高的反向锁紧精度。常用于印刷机械、包装机械、纺织机械、食品机械、家用电器、轻工机械及测试设备等。常用转矩0.34N · m - 121 N · m,适用于高转速,一般为3900 - 34000r/min。选用这种离合器用户自己的轴的硬度要达到HRC58 - 62,而且尺寸精度和形位公差要达到要求。
HF(滚针离合器):由冲压外圈和塑料保持架组成;保持架可以自带塑料簧片也可以上不锈钢簧片引导滚针,外圈上的斜面滚道和滚针作为锁紧装置。HFL(离合器和轴承组件):支承轴承装在滚针离合器的两侧并承受径向负荷,作为支承轴承的是滚针和塑料保持架组件。材质:外壳一般为ST14低碳钢(特殊场合可采用不锈钢);例如:单向HF2016被广泛应用在洗衣机轴承上!
HF        冲压式滚针离合器HF,钢弹簧
HF..-KF    冲压式滚针离合器HF..-KF,塑料弹簧
HF..-KFR    冲压式滚针离合器HF..-KFR,塑料弹簧和有凸边的外圈
HF..-R    冲压式滚针离合器HF..-R,钢弹簧和有凸边的外圈
HFL        冲压式滚针离合器HFL,带有滑动或滚动轴承配置,钢弹簧
HFL..-KF  冲压式滚针离合器HFL..-KF,带有滑动或滚动轴承配置,塑料弹簧
HFL..-KFR  冲压式滚针离合器HFL..-KFR,带有滑动或滚动轴承配置,塑料弹簧,有凸边的外圈
HFL..-R  冲压式滚针离合器HFL..-R,带有滑动或滚动轴承配置,钢弹簧,有凸边的外圈
HFZ        英制冲压式滚针离合器HFZ,钢弹簧
HFLZ      英制冲压式滚针离合器HFLZ,带有滑动或滚动轴承配置,钢弹簧
Drawn cup needle roller clutches

Shaft Diameter | Clutch Designation | Weight Approx | Boundary Dimensions | Torque  | Limiting Speed | Suitable Drawn Cup Bearings | ||||
Plastic Springs | Steel Springs | Fw | D | C | Rotating Shaft Min-1 |  Rotating Outer Ring Min-1 | ||||
mm | g | mm | Nm | rpm | ||||||
HF series | ||||||||||
3 | HF0306KF |   | 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN |
4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
6 | HK0608KF |   | 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 |
HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 0.5 | 23000 | 13000 | HK0608 | |
  | HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | |
8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
-- | HF081210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
-- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
-- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
-- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
Shaft Diameter | Clutch Designation |  Weight Approx | Boundary Dimensions | Torque  | Limiting Speed | ||||||
Plastic Springs | Steel Springs | Fw | D | C |  Rotating Shaft Min-1 |  Rotating Outer Ring Min-1 | |||||
mm | g | mm | Nm | rpm | |||||||
HFL series | |||||||||||
3 | HFL0308 | -- | 3 | 3 | 6.5 | 8 | 1 | -- | -- | ||
4 | HFL0408 | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | ||
6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | ||
HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | |||
-- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | |||
8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | ||
-- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | |||
HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | |||
HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | |||
10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | ||
HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | |||
12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | ||
14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | ||
16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | ||
18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | ||
20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | ||
25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | ||
30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | ||
35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 |


Part numbers |  Weight(g) |  Boundary dimensions | |||
Fw | D | C | Torque (Nm) | ||
FC/FCL/FCB series  | |||||
FC4K | 1 | 4 | 8 | 6 | 0.34 |
FC6 | 3 | 6 | 10 | 12 | 1.76 |
FC6K | 3 | 6 | 10 | 12 | 1.76 |
FC8 | 4 | 8 | 14 | 12 | 5.3 |
FCL8K | 3.5 | 8 | 12 | 12 | 5 |
FC10 | 4.8 | 10 | 16 | 12 | 6 |
FCL10K | 4 | 10 | 14 | 12 | 5.3 |
FC12 | 11 | 12 | 18 | 16 | 12.2 |
FC14K | 13 | 14 | 20 | 16 | 17.3 |
FC16 | 14 | 16 | 22 | 16 | 20.5 |
FC20 | 17 | 20 | 26 | 16 | 28.5 |
FC25 | 30 | 25 | 32 | 20 | 66 |
FC30 | 36 | 30 | 37 | 20 | 90 |
FC35 | 40 | 35 | 42 | 20 | 121 |
FCB8 | 10 | 8 | 14 | 20 | 5 |
FCB10 | 15 | 16 | 16 | 20 | 10 |
FCB12 | 18 | 18 | 18 | 26 | 12.2 |
FCB16 | 22 | 22 | 22 | 26 | 20.5 |
FCB20 | 27 | 26 | 26 | 26 | 28.5 |
FCB25 | 44 | 32 | 32 | 30 | 66 |
FCB30 | 51 | 37 | 37 | 30 | 90 |
FCB35 | 58 | 35 | 42 | 30 | 121 |
Part numbers | Weight (g) |  Boundary dimensions | |||
Fw | D | C | Torque (Nm) | ||
RC/RCB series | |||||
RC040708 | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
RC040708-FS | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
RC061008 | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
RC061008-FC | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
RC101410 | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
RC101410-FC | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
RC121610 | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
RC121610-FS | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
RC162110 | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
RC162110-FC | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
RCB061014 | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
RCB061014-FS | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
RCB101416 | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
RCB101416-FS | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
RCB162117 | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
RCB162117-FS | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
