1 PRODUCT OVERVIEW

General Description

Oolite-Box-V1.0 is exquisite portable and small wireless router that supports 802.11b/g/b 2x2 2.4GHz
WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps. It is made up of base
board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich
IEEE802.11 b/g/n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms.
Oolite-Box-V1.0 has 2 FE RJ45 ports which support both wired connection and wireless connection at
the same time.it allowsusers not only able to share their internet by wired connection but also wireless
connection.Its power consumption is very low.
Oolite-Box-V1.0 standard version can update to support 2 * 4G Mini-Pcie Card or 1 * 4G Module ( Mini?Pcie Interface ) + 1 * WiFI Module(Mini-Pcie Interface).

Features:
 CPU: QCA9531 with 560 MHz MIPS 24Kc
 WiFi: 80211 b/g/n 2*2 2.4GHz 300Mbps(Can Add 1 * WiFI Module )
 RAM: 64MB/128MB DDR2 RAM(Optional)
 Flash: 8MB/16MB/32MB/64MB SPI NOR Flash(Optional)
 Power supply: 12V 2A DC
 Net Port: 1 WAN + 4 LAN
 Antenna: 2 * Internal antenna.(If use 4G/WiFi Card will be more.)
 1 * RESET Button
 1 * UART console(In the housing)
 2 * 4G Mini-Pcie Card
 1 * 4G Module ( Mini-Pcie Interface ) + 1 * WiFI Module (Mini-Pcie Interface)

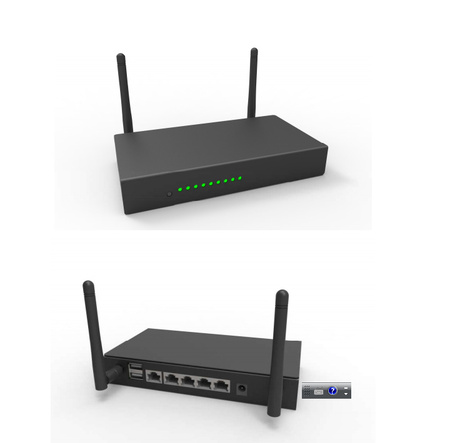

2 PRODUCT PICTURES(STANDARD VERSION)

2 PRODUCT PICTURES(UPDATE VERSION)

3 PCBA PICTURES

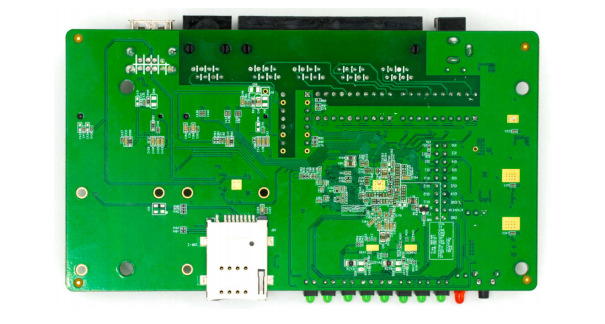

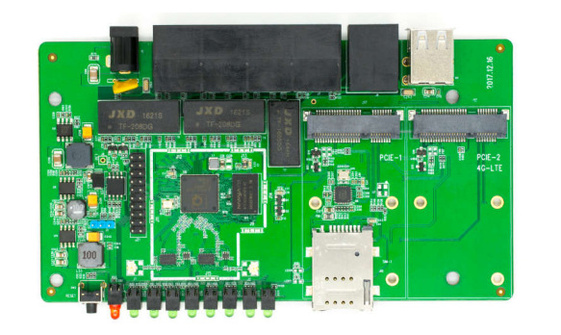

Positive Side:

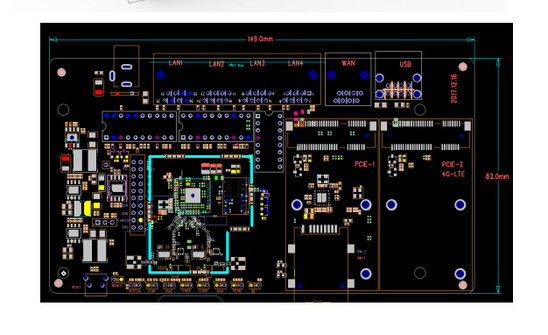

Negative Side:

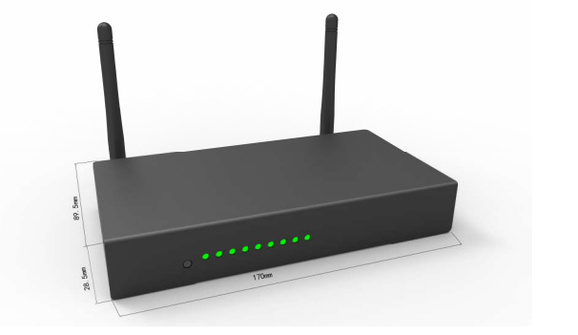

3.SIZE MARKING

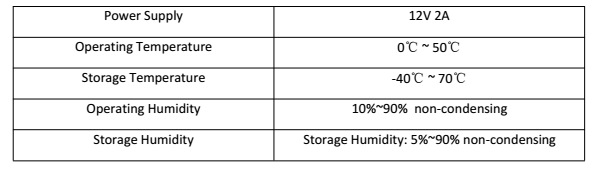

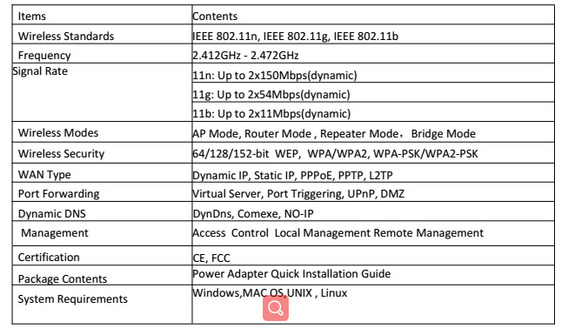

4. ELECTRICAL SPECIFICATIONS

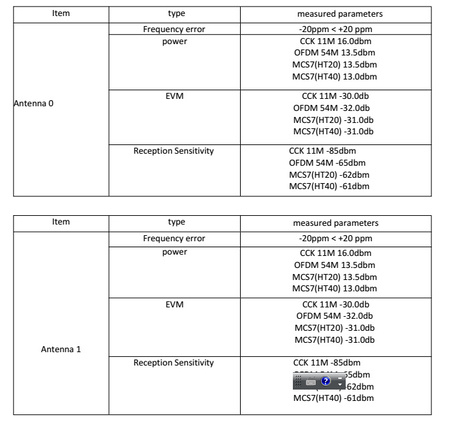

RF hardware performance

5.ENVIRONAMENT
